The Best Cutler-Hammer Generator Interlock Kits for Safe Home Backup
As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.
Cutler-Hammer load centers and electrical panels have earned a lasting reputation among homeowners and electricians for dependable circuit protection, sturdy enclosure construction, and long-term service reliability. When severe weather knocks out grid power, equipping an existing breaker enclosure with a cutler hammer generator interlock kit provides a safe, mechanical barrier that permits backup power distribution without the substantial rewiring costs associated with traditional transfer switches. These mechanical lockout plates physically block the main utility breaker from operating at the same time as a dedicated generator backfeed breaker, ensuring complete electrical isolation for utility workers down the line.
The models in this lineup differ primarily in their electrical panel series compatibility, such as classic CH styles versus modern BR configurations, service amperage ratings spanning 100 amps to 200 amps, precise breaker center-to-center spacing measurements, and whether the sliding plate utilizes CNC machined anodized aluminum or durable polycarbonate.
Product rundown
5 models are covered below. Pick a row to jump straight to it.
| No. | Model | Price |
|---|---|---|
| 01 |
 Generator Interlock Kit Compatible with EatonBest for Vertical Throw CH Panels |
Price not listed |
| 02 |
 Generator Interlock Kit for Eaton CutlerBest for BR and CH Plug-In Neutral Panels |
Price not listed |
| 03 |
 Generator Interlock for Cutler HammerBest for 100 Amp Service Panels |
Price not listed |
| 04 |
 BR-200 Generator Interlock Kit for CutlerBest for Heavy Duty 200 Amp Service |
Price not listed |
| 05 |
 Blue Generator Interlock for Eaton CutlerBest for High Visibility Panel Operation |
Price not listed |
Cutler-Hammer Generator Interlock Kits Compared
Best for: Homes with 100 amp electrical service
Pros
- Solid billet aluminum construction
- Made in USA
- Hardware and drill bit included
Cons
- Breaker spacing not specified in listing
- Limited to 100 amp panels
Best for: BR and CH plug-in neutral panels
Pros
- Anodized aluminum alloy body
- Hardened 3/16 inch steel drill bit
- Fits plug-in neutral BR and CH panels
Cons
- Not compatible with vertical throw breakers
Best for: Vertical throw CH panels
Pros
- Tough polycarbonate plate
- Includes matching drill bit
- Complete mounting hardware kit
Cons
- Plastic rather than aluminum alloy
- Restricted to 2 1/4 inch spacing
| Model | Panel Compatibility & Amperage | Breaker Spacing | Plate Material |
|---|---|---|---|
| Generator Interlock Kit Compatible with Eaton | CH Series CH-5 (150A or 200A) | 2 1/4 inches | Polycarbonate (PC) Plastic |
| Generator Interlock Kit for Eaton Cutler | BR and CH Plug-in Neutral (150A or 200A) | 1 1/4 to 1 7/16 inches | Anodized Aluminum Alloy |
| Generator Interlock for Cutler Hammer | Cutler-Hammer & Eaton (100A) | Not listed | Billet Aluminum |
| BR-200 Generator Interlock Kit for Cutler | BR and CH Series (150A or 200A) | Not listed | CNC Machined Aluminum |
| Blue Generator Interlock for Eaton Cutler | Challenger BR and CH Series (150A or 200A) | 1 1/4 to 1 1/2 inches | Anodized Aluminum Alloy |

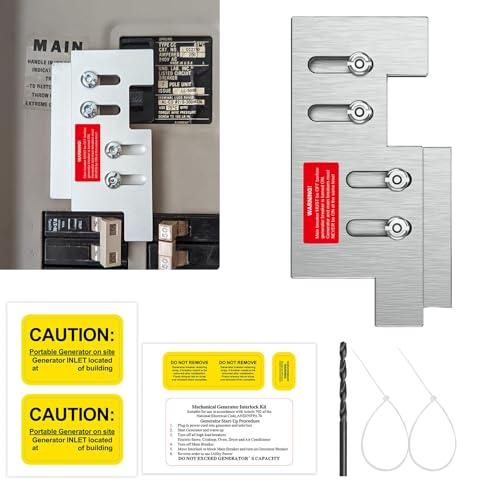

Generator Interlock Kit Compatible with EatonBest for Vertical Throw CH Panels
The Generator Interlock Kit Compatible with Eaton is engineered specifically for vertical throw CH series electrical panels carrying 150 amp or 200 amp service ratings. Designed under part number H-GIK-CH5, this mechanical sliding system matches single-phase panels configured with 12 circuits. Its primary safety purpose is to prevent the main utility handle and the generator backfeed breaker from switching on simultaneously, satisfying National Electrical Code mandates such as NEC 230.85 and NEC 702.7. By establishing a rigid physical lockout, it eliminates dangerous utility backfeeding that poses life-threatening hazards to line technicians working to restore grid connectivity during widespread outages.
Unlike metal sliding plates, this kit uses durable polycarbonate plastic construction that resists physical fatigue and delivers built-in non-conductive electrical insulation. The package comes fully equipped for panel modification, supplying one interlocking plate, four shoulder screws, four matching hex nuts, a properly sized panel drill bit, two zip ties, five reminder labels, and an instruction manual. Installation requires precisely 2 1/4 inches of space measured between the main breaker handle and the branch generator breaker. If your home backup system relies on a portable source like a champion generator 3100 inverter, this lockout ensures seamless, code-compliant distribution throughout your household circuits.
This model suits property owners managing Cutler-Hammer CH panels with vertical main switches who prefer an insulated polycarbonate mechanism. However, if your panel has a tighter breaker gap between 1 1/4 and 1 7/16 inches, or if you prefer an aluminum build, you should pass on this wide-spaced unit and look toward the BR-series aluminum alternatives listed below.
Generator Interlock Kit for Eaton CutlerBest for BR and CH Plug-In Neutral Panels
The Generator Interlock Kit for Eaton Cutler from SPZOCE delivers robust mechanical protection tailored for 150 amp and 200 amp panels. It accommodates both the classic BR series and select CH series panels that feature plug-in neutral architecture. Fabricated from aluminum alloy with polished edges and a durable anodized finish, this screw-mount interlock plate glides smoothly against the panel face to ensure that household circuits draw from only one electrical source at any given time.
A major highlight of this cutler hammer generator interlock comparison pick is its broad spacing tolerance, fitting gaps between 1 1/4 inches and 1 7/16 inches between the main breaker switch and the adjacent branch breaker. The complete kit includes the anodized plate, three screws and nuts, a generator start-up sequence label, five warning labels, two zip ties, step-by-step instructions, and a heavy-duty 3/16-inch steel drill bit designed to penetrate steel panel deadfronts smoothly. When paired with a portable power source such as an aceup 4000 watt inverter generator, this setup lets you energize critical branch circuits safely during blackouts without overloading the enclosure.
This interlock is the best match for homeowners with standard 150-amp or 200 amp cutler hammer generator interlock panels utilizing plug-in neutrals and moderate breaker gaps. It yields ground to specialized kits if your breaker enclosure is an older 100-amp service center or if you require the wider 2 1/4-inch spacing found on dedicated vertical-throw CH enclosures.
Generator Interlock for Cutler HammerBest for 100 Amp Service Panels
Buyer favouriteScored 9.4/10 or higher
Price not listed
9.4/10Our scoreOverwhelmingly positive
Brand Wired Rite ASIN B09D9WFDLQ
For smaller residences, outbuildings, and secondary distribution centers, the Generator Interlock for Cutler Hammer manufactured by Wired Rite provides a specialized solution for 100-amp electrical panels. Model WR-90 (part number KTS-15) is CNC machined from solid billet aluminum in the USA, delivering exceptional rigidity and long-lasting mechanical strength. It is rated for a maximum current of 100 amps across 12 circuits, offering code-compliant operation under Article 702 of the National Electrical Code for manual emergency transfer operations.
The kit includes the solid aluminum interlock plate, full mounting hardware, panel identification stickers, a drill bit, and an illustrated installation instruction manual. Although the listing does not specify the precise center-to-center breaker spacing measurement, it is custom designed to interface with 100-amp main switch layouts on compatible Cutler-Hammer and Eaton breaker boxes. The billet aluminum construction ensures that the plate will not warp, bend, or degrade when subjected to regular seasonal testing or repeated switch movements during winter storms.
Homeowners seeking a 100 amp cutler hammer generator interlock for a modest cottage, subpanel, or starter home will find this compact, American-made plate ideal. Conversely, if your electrical entrance service delivers 150 or 200 amps, this model will not fit your panel dimensions, meaning you must step up to the BR-200 or SPZOCE brackets.
BR-200 Generator Interlock Kit for CutlerBest for Heavy Duty 200 Amp Service
Price not listed
8.4/10Our scoreMostly positive
Brand Gen Safety ASIN B086Q1PBXS
Best for: Panel covers with raised main breakers
Pros
- Heavy-gauge CNC machined aluminum
- Fits flat or raised main breaker panels
- Includes weatherproof vinyl label set
Cons
- Drill bit not listed in package
The GenSafety BR-200 Generator Interlock Kit for Cutler is a heavy-duty bracket manufactured in the USA from heavy-gauge, CNC machined aluminum. Engineered to fit both Cutler-Hammer BR and CH series load centers rated at 150 amps and 200 amps, the BR-200 solves a common installation headache by accommodating panel deadfronts that feature either a flat or raised surface area surrounding the main service breaker. Its color-anodized surface finish guards against oxidation while giving the electrical cabinet a professional, clean appearance.
Weighing 8 ounces, this indoor cabinet device comes packaged with the core interlocking assembly, mounting hardware, and a specialized set of weatherproof vinyl labels that guide users through safe generator connection and transfer sequences. Although the listing does not specify the breaker spacing dimension or whether a drill bit is included in the box, the precision machining ensures smooth sliding operation between lockout states. Preventing backfeeding through the main breaker is critical to prevent fatal electrical shocks to utility personnel, making a manual generator interlock cutler hammer assembly an essential component for any home backup layout.
This kit is tailored for users who want premium domestic craftsmanship and have a 150-amp or 200-amp panel that features raised sheet metal around the main breaker. It defers to the LATING or SPZOCE models if you specifically need an out-of-the-box package that explicitly includes a matching steel drill bit and retaining straps.
Blue Generator Interlock for Eaton CutlerBest for High Visibility Panel Operation
Best for: High-visibility physical breaker lockout needs
Pros
- Anodized blue aluminum plate
- Includes generator breaker retainer straps
- Comes with 3/16 inch drill bit
Cons
- Limited to 1 1/4 to 1 1/2 inch spacing
The Blue Generator Interlock for Eaton Cutler produced by LATING stands out immediately inside a dimly lit electrical cabinet thanks to its vibrant blue anodized aluminum finish. Designed for Cutler-Hammer, Challenger, and BR series panels handling 150 amp or 200 amp service, this cutler hammer br generator interlock bracket also accommodates compatible CH series units. It requires a spacing gap between 1 1/4 inches and 1 1/2 inches measured from the main breaker handle down to the closest generator branch switch.
The physical interlock mechanism consists of two sliding metal plates held firmly together by three bolts, delivering reliable manual sliding travel that prevents utility power and portable generator feeds from connecting at the same time. The anodized treatment not only provides high hardness and corrosion resistance, but also contributes thermal and electrical insulation. The package comes generously outfitted with the sliding plate assembly, six safety labels, two 11.8-inch generator breaker retainer straps to mechanically anchor your generator breaker in place, a 3/16-inch steel drill bit, and an installation manual.
This kit is the ideal choice for homeowners who want unmistakable visual confirmation of panel breaker status in a dark basement during an electrical emergency. It gives way to the HUBRV model if your panel is a vertical throw CH panel that requires a wider 2 1/4-inch spacing measurement.
How to Choose the Right Cutler-Hammer Generator Interlock
Selecting which cutler hammer generator interlock to buy requires an accurate survey of your electrical panel face before making a decision. Cutler-Hammer manufactured several generations of load centers, and interlock plates are not universally interchangeable. Taking precise measurements and identifying your panel family ensures you receive a secure, code-compliant fit that operates smoothly without binding.
- Panel Series Identification: Determine whether your panel is a classic CH series with tan breaker toggles or a BR series using standard black toggles. CH panels often utilize specialized spacing or vertical throws, such as the HUBRV kit built exclusively for CH-5 panels, whereas models like the GenSafety BR-200 and SPZOCE cover BR and compatible plug-in neutral panels.
- Main Breaker Amperage: Match the plate to your home service capacity. Standard residential systems utilize 150-amp or 200-amp mains, supported by the SPZOCE, GenSafety, and LATING kits. If you are outfitting a 100-amp service box, the Wired Rite interlock is required, as larger 200-amp brackets will not align with smaller 100-amp breaker toggles.
- Center-to-Center Breaker Spacing: Measure the vertical distance from the bottom edge of the main breaker handle to the top edge of the generator breaker switch directly beneath it. Tighter configurations require a 1 1/4-inch to 1 7/16-inch range like the SPZOCE or LATING brackets, while vertical throw CH enclosures demand a wider 2 1/4-inch spacing found on the HUBRV kit.
- Material Quality and Installation Hardware: Consider whether your environment favors CNC machined anodized billet aluminum, like the Wired Rite and GenSafety units, or non-conductive polycarbonate plastic. Verify the included components as well; packages from SPZOCE and LATING include the necessary 3/16-inch drill bit, saving you an extra trip to the hardware store.
While permanent gas or diesel generators are common, families exploring portable solar options like a jackery solar generator should note that mechanical interlocks work exclusively with hardwired generator inlet boxes feeding dedicated circuit breakers on an alternating current panel.
FAQ
What is the difference between Cutler-Hammer CH and BR series interlocks?
Cutler-Hammer CH panels feature commercial-grade construction, tan switch toggles, and often distinct breaker spacing or vertical main breaker throws. The BR series, originally developed under the Bryant line, uses standard one-inch black breaker toggles and different panel cover stamping. Because the handle positions and spacing vary, an interlock built for a cutler hammer ch generator interlock layout will not align with a cutler hammer br generator interlock panel unless the kit explicitly lists compatibility for both.
Why is exact breaker spacing critical when ordering an interlock kit?
An interlock plate works on tight mechanical tolerances to ensure one breaker cannot be toggled on until the other is completely shut off. If the spacing between your main breaker and your branch breaker is 2 1/4 inches, a plate made for 1 1/4 inches will not physically reach or safely block the opposing breaker switch. Always measure from the inside edges of the breaker switches before purchasing.
Does a generator interlock meet National Electrical Code standards?
Yes, mechanical generator interlocks comply with NEC Article 702 (Optional Standby Systems) and NEC 230.85 when installed properly on listed enclosures. The code mandates an approved mechanical interlock device to prevent accidental parallel operation of normal utility power and standby generator sources, safeguarding utility workers from backfed grid lines.
Can a homeowner install a Cutler-Hammer interlock kit independently?
Installing an interlock plate requires removing the panel deadfront cover, carefully drilling pilot holes with the provided drill bit, and securing the mounting shoulder bolts. Because working around an exposed panel interior involves serious risk of electrical shock from energized busbars, installation should only be performed by qualified personnel or licensed electricians who can verify that power to the panel is completely disconnected.
What should I do if the interlock plate does not slide smoothly after installation?
If the plate binds or fails to slide freely, never force it. Ensure that the shoulder screws are snug but not over-tightened, allowing the plate to glide along its tracks. Verify that the breaker toggles are correctly positioned and aligned within the cutouts. If the plate still fails to function as intended, do not use the generator connection and reach out to the manufacturer for replacement or support.
