WEN Table Saw Miter Gauge Lineup: Choosing the Right Workshop Setup
As Amazon Associates, we earn from qualifying purchases. This means we may receive a small commission at no extra cost to you if you click through and make a purchase.
WEN has earned a well-established reputation among home woodworkers and DIY builders for manufacturing dependable workshop equipment that emphasizes fundamental mechanical accuracy without unnecessary complexity. When operating a stationary cutting tool, the miter gauge serves as the primary bridge between raw lumber and clean, gap-free joinery. Factory gauges supplied with introductory benchtop machines frequently suffer from loose track tolerances, thin stamped bodies, and inconsistent stops, leading many craftspeople to seek a solid aftermarket solution. By focusing on heavy-gauge steel, machined brass hardware, and extruded aluminum profiles, the brand delivers durable accessories designed to stabilize workpieces and bring repeatable precision to domestic garages and small maker spaces.
While each of these three workshop accessories shares WEN’s practical approach to machining, they serve three interconnected roles in the cutting workflow: the WA1401 provides the core rotational base for angular crosscuts, the ME522G delivers micro-height and fence-offset verification at the blade, and the WA1402 functions as an extended supportive fence system with a dedicated flip stop for batch processing.
Product rundown
3 models are covered below. Pick a row to jump straight to it.
| No. | Model | Price |
|---|---|---|
| 01 |
 WEN Steel and Brass Premium MiterBest for Precise Crosscuts |
Price not listed |
| 02 |
 WEN 2-Inch Dual-Scale Tool SetupBest for Fast Height Calibration |
Price not listed |
| 03 |
 WEN 18-Inch Premium Aluminum Miter GaugeBest for Repeatable Lengths |
Price not listed |
WEN Miter Gauges Compared
| Model | Primary Function | Core Materials | Key Alignment Feature | Standard Compatibility |
|---|---|---|---|---|
| WEN WA1401 | Angular crosscutting guide | Alloy steel and brass | 27 positive angle stops | 3/4-inch by 3/8-inch miter slots |
| WEN ME522G | Blade and bit height calibration | CNC-machined aluminum and brass | Dual-scale 1/16-inch markings | Universal surface placement |
| WEN WA1402 | Extended workpiece support | Aluminum, steel, brass, and phenolic resin | Flip-down repeatable stop | Mounts to WA1401 and compatible gauges |
Examining this lineup reveals an intentional, modular structure rather than competing variations of the same tool. Many woodworkers who perform a complete dewalt portable table saw upgrade discover that a bare miter gauge solves track play but still requires workpiece stabilization for longer boards. By separating the rotational steel guide head, the extruded support fence, and the height calibration block into dedicated components, users can customize their workstation setup to match specific joinery tasks.
WEN Steel and Brass Premium MiterBest for Precise Crosscuts
Price not listed
4.4Amazon buyer averageVery positive
Brand WEN ASIN B0CYCQ6SBY
Best for: Woodworkers needing repeatable angle detents
Pros
- 27 positive angle stops
- Steel and brass construction
- Expansion discs eliminate play
- Two-year warranty included
Cons
- Lacks integrated support fence
- Heavier steel plate
The WEN Steel and Brass Premium Miter, designated as model WA1401, serves as the heavy-duty mechanical foundation for accurate crosscuts across multiple stationary power tools. Built with an alloy steel miter plate and resilient brass lock knobs, this unit is engineered to resist flexing under workpiece pressure. The core mechanism centers around a precision-machined miter plate equipped with 27 positive stops. These positive detents are located at five-degree increments between 0 and 60 degrees in both directions, along with dedicated stops at 22.5 degrees for common octagonal and crown moulding cuts. For non-standard angles, the laser-etched scale markings extend out to the rim of the steel plate, allowing operators to verify arbitrary settings cleanly.
A persistent frustration with entry-level miter gauges is side-to-side slop inside the table channel, which undermines cutting accuracy regardless of how carefully the protractor plate is locked. WEN addresses this issue by integrating miter bar expansion discs along the guide bar. These discs can be adjusted outward to take up minor manufacturing variations within any standard 3/4-inch by 3/8-inch miter slot, ensuring smooth forward gliding without lateral deflection. The manufacturer lists native compatibility with its own machinery, including the BA1411 band saw as well as the TT0811 and TT1015 table saws, while adhering to the universal slot dimensions found across the woodworking industry.
This primary guide suits hobbyists and home woodworkers who are dissatisfied with lightweight plastic or stamped-metal stock gauges and demand tight, repeatable angle settings. Its robust steel-and-brass build brings long-term durability to high-friction tasks, backed by a two-year warranty. While the tool excels at holding angles securely on its own, craftspeople who regularly handle workpieces longer than twelve inches will eventually want to supplement its compact steel face with a wider fence attachment to eliminate board pivot during the cut stroke.

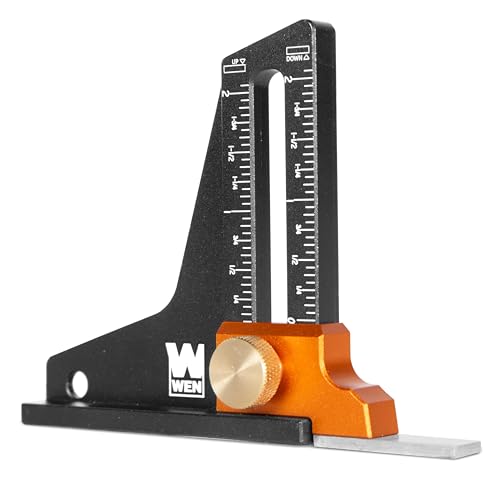

WEN 2-Inch Dual-Scale Tool SetupBest for Fast Height Calibration
Buyer favourite4.7 or better on Amazon’s buyer average
Price not listed
4.8Amazon buyer averageOverwhelmingly positive
Brand WEN ASIN B0FM5VBRYH
Best for: Fast blade and bit height setup
Pros
- CNC-machined anodized aluminum
- Laser-etched dual scales
- Knurled brass adjustment knob
- Compact pocket-sized footprint
Cons
- Limited two-inch range
- Dedicated strictly to calibration
Accurate crosscutting depends not only on the horizontal angle of the workpiece against the blade, but also on the vertical exposure and clearance of the cutting tooling itself. The WEN 2-Inch Dual-Scale Tool Setup, sold under model number ME522G, is a compact reference block designed to eliminate guesswork when dialing in stationary equipment. Machined from solid anodized aluminum using CNC processes, this black gauge features a stable two-inch by two-inch footprint that rests firmly on cast-iron or aluminum machine tables without tipping over during adjustments.
The instrument incorporates a knurled brass adjustment knob that provides positive tactile control when positioning the vertical steel reference pointer. Laser-etched scale markings along the body provide 1/16-inch graduations over a two-inch range, offering high contrast that resists fading despite workshop dust and handling. A standout functional characteristic of the dual-scale layout is that measurements can be taken from either the top or the bottom surface of the pointer. This dual reading enables woodworkers to measure blade projection, dado stack height, router bit depth, drill press plunge stops, and fence offsets with equal mechanical consistency.
This setup companion is designed for woodworkers who want to streamline their pre-cut calibration and protect their cutting edges from trial-and-error damage. It replaces makeshift wooden setup blocks and flexible tape measures that can introduce small, cumulative errors into multi-part assemblies. While the ME522G does not guide wood through the saw blade itself, it operates as an essential verification step before engaging the miter bar, ensuring that tenons, grooves, and through-cuts match the intended project specifications.
WEN 18-Inch Premium Aluminum Miter GaugeBest for Repeatable Lengths
Price not listed
4.2Amazon buyer averageMostly positive
Brand WEN ASIN B0F1DMZR33
Best for: Woodworkers cutting repetitive board lengths
Pros
- Flip-down repeatable stop
- Eighteen-inch board support
- Permanently etched steel scale
- Micro-adjustment calibration screws
Cons
- Requires base miter gauge
- Adds overall tool width
When cutting multiple pieces of identical length for picture frames, shelving units, or cabinet doors, a standalone miter head offers insufficient lateral support. The WEN 18-Inch Premium Aluminum Miter Gauge fence, carrying part number WA1402, provides the extended structure necessary for stable material handling. Manufactured from a rigid blend of premium aluminum, stainless steel, brass, and durable phenolic resin, this eighteen-inch accessory bolts directly to the face of compatible miter gauges to support wide or long boards directly beside the blade path.
The standout utility of the WA1402 lies in its integrated flip-down stop, which allows woodworkers to establish a physical reference point for repeatable cuts. When trimming boards to identical lengths, the operator drops the stop into position to index the workpiece end; when clearing an offcut or performing an arbitrary cut, the stop simply swings upward out of the way without disturbing the calibrated measurement. The top surface incorporates a permanently etched steel scale with high-visibility graduations, while the mounting attachment block includes built-in micro-adjustment screws that allow users to calibrate the fence perfectly parallel to the miter bar and square to the table surface.
This auxiliary fence is the ideal companion for any woodworker utilizing the WA1401 miter gauge who needs to execute batch processing safely and efficiently. By extending the contact surface across eighteen inches of CNC-machined aluminum, it prevents long boards from tipping or dragging against the saw table during the feed stroke. Because it is strictly an auxiliary fence and stop system, it cannot function independently; it relies on a compatible base miter gauge to ride the table slot.
How to Choose the Right WEN Miter Gauge
Selecting the proper configuration from the WEN table saw miter gauge lineup requires evaluating the specific limitations of your current machinery and identifying where inaccuracies are occurring in your shop. Woodworkers struggling with angular drift should begin by examining their miter track interface. Standard table saws, router tables, and band saws utilize a 3/4-inch wide by 3/8-inch deep T-slot or U-channel. If your machine features these standard dimensions, investing in a heavy-duty miter gauge upgrade like the WA1401 immediately resolves lateral wobble through its integrated expansion discs, establishing a true perpendicular baseline for joinery.
Workpiece dimensions dictate whether an auxiliary fence is necessary. If your woodworking primarily involves trimming narrow trim pieces, small dowels, or craft stock under six inches in width, a bare miter gauge head provides sufficient bearing area. However, as soon as you begin cutting cabinet rails, face frames, or wide shelving boards, the short face of a standard gauge allows the wood to pivot slightly under feed pressure. Adding the WA1402 fence expands the supporting surface across eighteen inches, while the flip-down stop eliminates the cumulative sizing discrepancies that ruin assembled frames.
Machinery integration and table layout also influence your selection. When aligning equipment such as an evolution table saw or a dedicated router station, verifying blade depth and fence spacing is just as critical as setting the cut angle. Workshop owners frequently overlook vertical alignment, leading to uneven cut depths and joint binding. Integrating the ME522G gauge into your regular setup routine bridges this gap, allowing you to establish exact 1/16-inch height settings quickly without risking contact between steel measuring tapes and carbide blade teeth.
Finally, consider the long-term wear resistance of the materials involved in your setup. Woodworking accessories that rely on molded plastic lock levers and painted scale markings often degrade over time due to friction, vibration, and sawdust buildup. WEN’s utilization of brass locking hardware, stainless steel fasteners, and laser-etched markings ensures that alignment points remain legible and secure over years of heavy use. Comparing these components alongside broader workshop tooling, such as the selections detailed in our guide to vevor woodworking tools, highlights the distinct mechanical value of all-metal construction for home woodshops.
FAQ
Does the WEN WA1401 miter gauge fit non-WEN table saws?
Yes. The WEN WA1401 is built with an industry-standard 3/4-inch wide by 3/8-inch deep miter bar, making it compatible with any table saw, router table, band saw, or disc sander featuring standard miter channels. It also includes adjustable expansion discs that allow users to fine-tune the bar fit to eliminate side-to-side slop in slightly oversized slots.
Can the WEN WA1402 fence attach to miter gauges from other brands?
The listing specifies that the WA1402 fence is compatible with the WEN WA1401 miter gauge as well as many other gauges on the market. It uses an adjustable attachment block with micro-calibration screws designed to interface with standard miter gauge face mounting slots.
How do the positive stops on the WA1401 assist woodworking accuracy?
The 27 positive stops lock the miter plate mechanically into pre-machined detents every five degrees from 0 to 60 degrees, with additional stops at 22.5 degrees. This detent system eliminates visual approximation, allowing the operator to snap directly into common joinery angles with consistent mechanical repeatability.
What makes the ME522G setup gauge useful for table saw operations?
The ME522G allows woodworkers to set precise blade heights, dado depths, and rip fence offsets up to two inches. With laser-etched 1/16-inch graduations and a dual-scale pointer that reads from either top or bottom, it provides quick, accurate physical verification before making a cut.
Why is all-metal construction beneficial for miter accessories?
Alloy steel, anodized aluminum, and solid brass resist deformation under tightening pressure and withstand the friction of sliding across cast-iron tables. Unlike plastic components, these metals maintain calibration stability across seasonal temperature changes and hold up to years of workshop wear.
